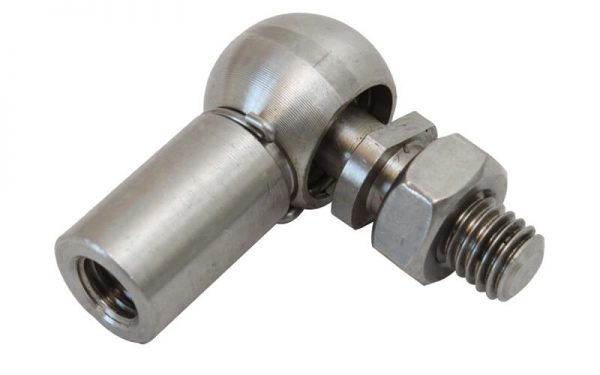

Ball Housing,Stainless steel AISI304,316,316L.
Ball Stud,Stainless steel AISI304,316,316L.
Clip,Stainless steel AISI304,316,etc.
For left-hand thread,please add LH(ex.CS10M6SSLH).
For fine-pitch thread,please add FG(ex.CS16M10SSFG) or CS16M10x1.25SS.
Special type upon request.

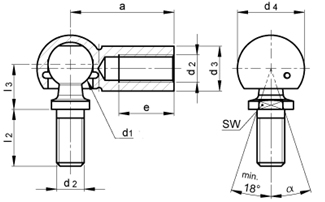

| Ball Dia d1 | d2 | I2 | I3 | e | d5 | I1 | a | WAF | Weight | |
| Kg/1000pcs for type | ||||||||||
| h9 | ±0.3 | ±0.3 | Min. | h11 | ±0.2 | ±0.3 | h14 | A and AS | B and BS | |
| C and CS | ||||||||||
| 8 | M5 | 10.2 | 9 | 10.2 | 5 | 4 | 22 | 7 | 15.2 | 12.85 |
| 7.5 | 13.35 | |||||||||
| 10 | M6 | 12.5 | 11 | 11.5 | 6 | 4.5 | 25 | 8 | 25.2 | 21.3 |
| 8 | 22 | |||||||||
| 13 | M8 | 16.5 | 13 | 14 | 8 | 5 | 30 | 11 | 53.1 | 43.1 |
| 10 | 45 | |||||||||
| 16 | M10 | 20 | 16 | 15.5 | 10 | 6 | 35 | 13 | 103.8 | 82.3 |
| M12 | 13 | 86.6 | ||||||||
| 19 | M14 | 28 | 20 | 21.5 | 14 | 12 | 45 | 16 | 220.9 | 181 |
| M16 | 18 | 188.7 | ||||||||
