Clevis Joint DIN71751 A, Clevis Joint DIN71751- LEHONB

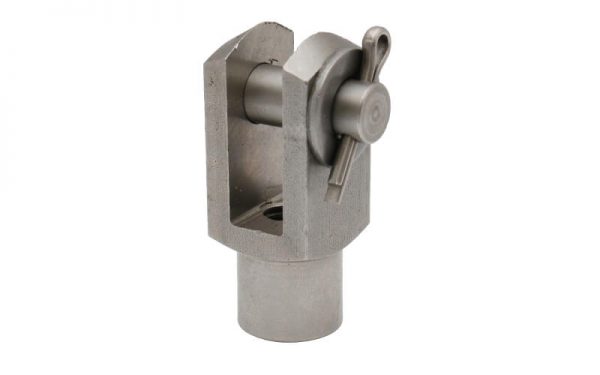

Clevis Joint DIN71751 A

SEND INQUIRY

Code for thread
Regular thread
Regular thread,left-handed
Fine-pitch thread
Fine-pitch thread,left-handed
Material
Clevis: low carbon steel Q235A or higher level steel
bolt: Q235A, tensile strength approx. 550-700 N / mm²
split pin,low carbon steel
washer: 65Mn hardened and annealed to approx. 430-500 HV
Surface protection
Blue zinc plated,yellow zinc plated,phosphatised oiled,chromeplated,or upon request.
Alternative:stainless steel AISI304,316,316L,etc

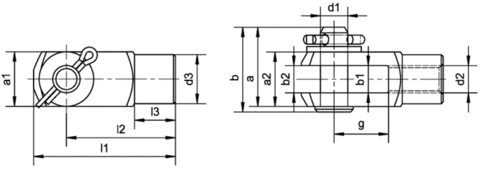

Part No.	d1	g	a	a1	a2	b	b1	b2		d2		d3	l1	l2		l3	Weight
	h11	±0.5		h11	+0.5 -0.2		B13			Regular thread	fine-pitch thread		±0.5			±0.3	(kg)/piece
A4x8	4	8	12	8	8	13	4	4	B13	M4x0.7		8	21	16	±0.3	6	0.007
A4x16	4	16	12	8	8	13	4	4		M4x0.7		8	29	24		6	0.009
A5x10	5	10	15	10	10	16.5	5	5		M5x0.8		9	26	20		7.5	0.012
A5x20	5	20	15	10	10	16.5	5	5		M5x0.8		9	36	30		7.5	0.016
A6x12	6	12	18	12	12	19.5	6	6		M6x1.0		10	31	24		9	0.021
A6x24	6	24	18	12	12	19.5	6	6		M6x1.0		10	43	36	±0.4	9	0.027
A8x16	8	16	23	16	16	25	8	8		M8x1.25		14	42	32		12	0.049
A8x16FG	8	16	23	16	16	25	8	8		M8x1.0		14	42	32		12	0.049
A8x32	8	32	23	16	16	25	8	8			M8x1.25	14	58	48		12	0.066
A8x32FG	8	32	23	16	16	25	8	8		M8x1.0		14	58	48		12	0.066
A10x20	10	20	29	20	20	31	10	10		M10x1.5		18	52	40		15	0.098
A10x20FG	10	20	29	20	20	31	10	10			M10x1.25	18	52	40		15	0.098
A10x40	10	40	29	20	20	31	10	10	+0.70 +0.15	M10x1.5		18	72	60		15	0.140
A10x40FG	10	40	29	20	20	31	10	10			M10x1.25	18	72	60		15	0.140
A12x24	12	24	35	24	24	38	12	12		M12x1.75		20	62	48		18	0.164
A12x24FG	12	24	35	24	24	38	12	12			M12x1.25	20	62	48		18	0.164
A12x48	12	48	35	24	24	38	12	12		M12x1.75		20	86	72		18	0.218
A12x48FG	12	48	35	24	24	38	12	12			M12x1.25	20	86	72		18	0.218
A14x28	14	28	40	27	27	43	14	14		M14x2.0		24	72	56		22.5	0.243
A14x28FG	14	28	40	27	27	43	14	14			M14x1.5	24	72	56		22.5	0.243
A14x56	14	56	40	27	27	43	14	14		M14x2.0		24	101	85		22.5	0.323
A14x56FG	14	56	40	27	27	43	14	14			M14x1.5	24	101	85		22.5	0.323
A16x32	16	32	45	32	32	48.5	16	16		M16x2.0		26	83	64	±0.4	24	0.368
A16x32FG	16	32	45	32	32	48.5	16	16			M16x1.5	26	83	64		24	0.368
A16x64	16	64	45	32	32	48.5	16	16		M16x2.0		26	115	96		24	0.497
A16x64FG	16	64	45	32	32	48.5	16	16			M16x1.5	26	115	96		24	0.497
A18x36	18	36	50	36	36	53.5	18	18		M18x2.5		30	94	72		27	0.516
A18x36FG	18	36	50	36	36	53.5	18	18			M18x1.5	30	94	72		27	0.516
A20x40	20	40	53	40	40	57	20	20		M20x2.5		34	105	80		30	0.713
A20x40FG	20	40	53	40	40	57	20	20			M20x1.5	34	105	80		30	0.713
A20x80	20	80	53	40	40	57	20	20	+0.70 +0.15	M20x2.5		34	145	120		30	0.963
A20x80FG	20	80	53	40	40	57	20	20			M20x1.5	34	145	120		30	0.963
A25x50	25	50	67	50	50	72.5	25	25		M24x3.0		42	132	100		36	1.411
A25x50FG	25	50	67	50	50	72.5	25	25			M24x2.0	42	132	100		36	1.411
A28x56	28	56	72	55	55	77.5	28	28		M27x3.0		48	148	112		40	1.915
A28x56FG	28	56	72	55	55	77.5	28	28			M27x2.0	48	148	112		40	1.915
A30x54FG	30	54	67	55	55	72.5	30	30			M27x2.0	48	148	110		40	1.836
A30x60	30	60	77	60	60	82.5	30	30		M30x3.5		52	160	120		42	2.465
A30x60FG	30	60	77	60	60	82.5	30	30			M30x2.0	52	160	120	±0.4	42	2.465
A35x54FG	35	54	87	70	70	94	35	35			M36x2.0	60	188	144		54	3.620
A35x72	35	72	87	70	70	94	35	35		M36x4.0		60	188	144		54	3.632
A35x72FG	35	72	87	70	70	94	35	35			M36x2.0	60	188	144		54	3.632
A36x72	35	72	87	70	70	94	36	36		M36x4.0		60	188	144		54	3.632
A36x72FG	35	72	87	70	70	94	36	36			M36x2.0	60	188	144		54	4.632
A40x84	40	84	100	85	85	106	40	40		M42x4.5	M42x2.0	70	232	168		63.5	6.700
A40x84FG	40	84	100	85	85	106	40	40			M42x2.0	70	232	168		63.5	6.700
A42x84	42	84	100	85	85	107	42	42		M42x4.5		70	232	168		63.5	6.516
A42x84FG	42	84	100	85	85	107	42	42			M42x2.0	70	232	168		63.5	6.516
A50x96	50	96	115	96	96	122	50	50		M48x5.0		82	265	192		73	9.756
A50x96FG	50	96	115	96	96	122	50	50			M48x2.0	82	265	192		73	9.746
