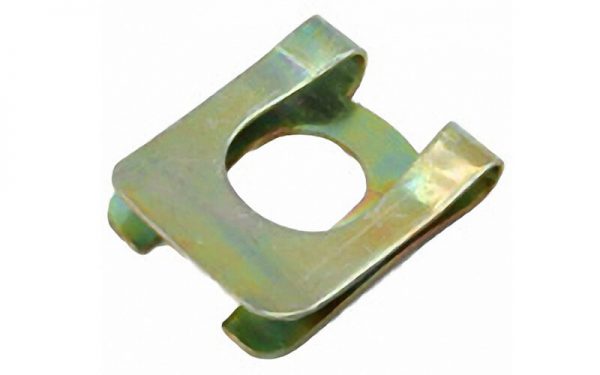

Material: Spring steel 65Mn,hardened and tempered.
Surface protection: Zinc plate,passivated in yellow or white.
Easily assembled by hand with tools.
For use with cotter bolts.
Dimensions are in mm.
Inch series are also available.

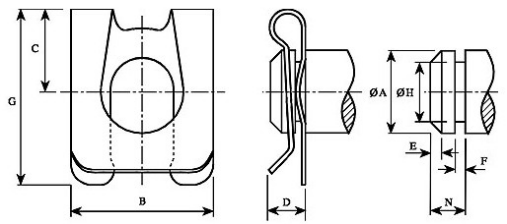

| Part No. | Ø A | B | C | D | E | F | G | Ø H | N | Weight /100pcs in Kgs |
| CFM4 | 4.00 | 7 | 4.0 | 2.2 | 0.50 | 0.74 | 8.75 | 3.2 | 2.1 | 0.02 |
| 3.93 | 0.64 | 3.1 | 1.9 | |||||||
| CFM5 | 5.00 | 9 | 4.5 | 2.3 | 0.50 | 0.84 | 11.00 | 4.1 | 2.6 | 0.03 |
| 4.93 | 0.64 | 3.9 | 2.4 | |||||||
| CFM6 | 6.00 | 11 | 6.0 | 3.3 | 0.75 | 0.84 | 14.25 | 5.1 | 3.1 | 0.07 |
| 5.93 | 0.64 | 4.9 | 2.9 | |||||||
| CFM8 | 8.00 | 14 | 8.0 | 3.5 | 1.00 | 1.04 | 17.25 | 6.1 | 3.6 | 0.11 |
| 7.91 | 0.84 | 5.9 | 3.4 | |||||||
| CFM10 | 10.00 | 18 | 10.3 | 4.6 | 1.00 | 1.15 | 21.75 | 8.2 | 4.6 | 0.21 |
| 9.91 | 0.95 | 7.8 | 4.4 | |||||||
| CFM12 | 12.00 | 22 | 12.0 | 4.6 | 1.25 | 1.25 | 25.50 | 9.7 | 5.1 | 0.29 |
| 11.89 | 1.05 | 8.8 | 4.9 |
