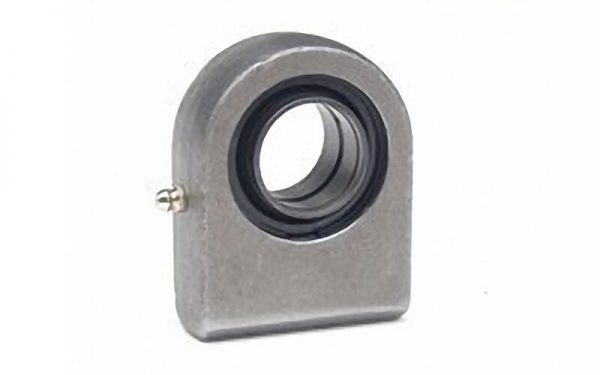

-Rod end housing with right or left-hand female thread.
-It is made up of a radial spherical plain bearing GE..LO and rod end housing.
-Rod end housing with a lubricating hole or grease nipple.
-Sealed design also available,e.g.GF 70 LO 2RS.Features：Suitable for grinding machine

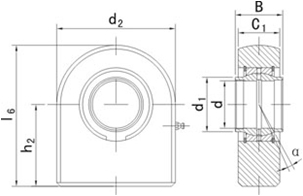

| Part No. | Dimensions mm | Loads ratings kN | Weight kg | ||||||||
| d | B | C1 | d2 | L6 | h2 | d1 | a ≈ | dyn C | stat C0 | ||
| GF16LO | 16 | 16 | 17.5 | 48 | 59 | 35 | 20 | 4 | 17 | 40 | 0.30 |
| GF20LO | 20 | 20 | 19 | 50 | 63 | 38 | 25 | 4 | 30 | 74 | 0.36 |
| GF25LO | 25 | 25 | 23 | 55 | 72.5 | 45 | 30.5 | 4 | 48 | 95 | 0.54 |
| GF32LO | 32 | 32 | 27 | 70 | 100 | 65 | 38 | 4 | 62.5 | 168 | 1.12 |
| GF40LO | 40 | 40 | 35 | 100 | 119 | 69 | 46 | 4 | 100 | 268 | 2.50 |
| GF50LO | 50 | 50 | 40 | 123 | 149.5 | 88 | 57 | 4 | 156 | 362 | 4.60 |
| GF63LO | 63 | 63 | 50 | 145 | 179.5 | 107 | 71.5 | 4 | 248 | 570 | 9.30 |
| GF70LO | 70 | 70 | 55 | 164 | 197 | 115 | 79 | 4 | 315 | 800 | 11.25 |
| GF80LO | 80 | 80 | 60 | 180 | 231 | 141 | 91 | 4 | 400 | 874 | 15.75 |
| GF90LO | 90 | 90 | 65 | 226 | 263 | 150 | 99 | 4 | 490 | 1045 | 24.00 |
| GF100LO | 100 | 100 | 70 | 250 | 295 | 170 | 113 | 4 | 610 | 1330 | 33.95 |
| GF100LO | 110 | 110 | 80 | 295 | 332.5 | 185 | 124 | 4 | 655 | 1490 | 49.00 |
