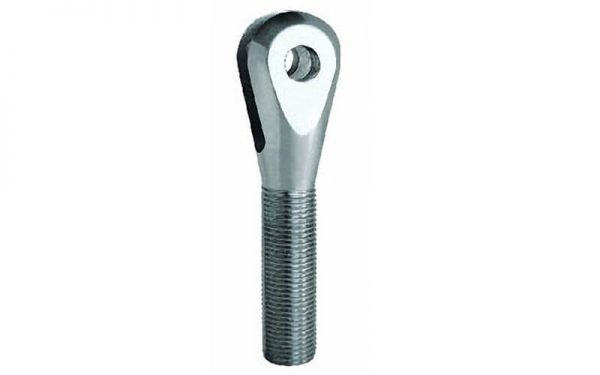

-Material:Carbon steel.
-Surface treatment:Zinc plated,passivated in yellow or white-blue.
-Dimensions are inches.
-Stainless material is also available,please add prefix ”SS” to the part no..
-Special type upon request.

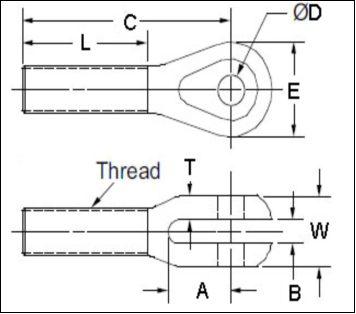

| Part No. | Thread | A | B | C | D | E | W | L |
| CMR-3 | 10-32 | 0.75 | 0.125 | 2 | 0.1875 | 0.375 | 0.438 | 1 |
| CMRL-3 | 10-32 LH | 0.75 | 0.125 | 2 | 0.1875 | 0.375 | 0.438 | 1 |
| CMR-4-3 | 1/4-28 | 0.75 | 0.125 | 2.25 | 0.1875 | 0.5 | 0.438 | 1.25 |
| CMRL-4-3 | 1/4-28 LH | 0.75 | 0.125 | 2.25 | 0.1875 | 0.5 | 0.438 | 1.25 |
| CMR-5 | 5/16-24 | 0.75 | 0.188 | 2.25 | 0.3125 | 0.875 | 0.75 | 1.25 |
| CMRL-5 | 5/16-24 LH | 0.75 | 0.188 | 2.25 | 0.3125 | 0.875 | 0.75 | 1.25 |
| CMR-5-4 | 5/16-24 | 0.75 | 0.188 | 2.25 | 0.25 | 0.875 | 0.625 | 1.25 |
| CMRL-5-4 | 5/16-24 LH | 0.75 | 0.188 | 2.25 | 0.25 | 0.875 | 0.625 | 1.25 |
| CMR-6-4 | 3/8-24 | 0.75 | 0.25 | 2 | 0.25 | 0.875 | 0.625 | 1 |
| CMRL-6-4 | 3/8-24 LH | 0.75 | 0.25 | 2 | 0.25 | 0.875 | 0.625 | 1 |
| CMR-6-5 | 3/8-24 | 0.75 | 0.188 | 2.25 | 0.3125 | 0.875 | 0.75 | 1.25 |
| CMRL-6-5 | 3/8-24 LH | 0.75 | 0.188 | 2.25 | 0.3125 | 0.875 | 0.75 | 1.25 |
| CMR-8-5 | 1/2-20 | 0.75 | 0.25 | 2.5 | 0.3125 | 1 | 0.75 | 1.5 |
| CMRL-8-5 | 1/2-20 LH | 0.75 | 0.25 | 2.5 | 0.3125 | 1 | 0.75 | 1.5 |
| CMR-8-6 | 1/2-20 | 0.75 | 0.25 | 2.5 | 0.375 | 1 | 0.875 | 1.5 |
| CMRL-8-6 | 1/2-20 LH | 0.75 | 0.25 | 2.5 | 0.375 | 1 | 0.875 | 1.5 |
| CMR-8-6A | 1/2-20 | 1 | 0.3125 | 2.75 | 0.375 | 1 | 0.875 | 1.5 |
| CMRL-8-6A | 1/2-20 LH | 1 | 0.3125 | 2.75 | 0.375 | 1 | 0.875 | 1.5 |
| CMR-8-6B | 1/2-20 | 1 | 0.375 | 2.75 | 0.375 | 1 | 0.875 | 1.5 |
| CMRL-8-6B | 1/2-20 LH | 1 | 0.375 | 2.75 | 0.375 | 1 | 0.875 | 1.5 |
| CMR-8-7 | 1/2-20 | 1.125 | 0.375 | 3.375 | 0.4375 | 1.125 | 1 | 2 |
| CMRL-8-7 | 1/2-20 LH | 1.125 | 0.375 | 3.375 | 0.4375 | 1.125 | 1 | 2 |
| CMR-10-6 | 5/8-18 | 1.125 | 0.375 | 3.375 | 0.375 | 1.125 | 0.875 | 2 |
| CMRL-10-6 | 5/8-18 LH | 1.125 | 0.375 | 3.375 | 0.375 | 1.125 | 0.875 | 2 |
| CMR-10-7 | 5/18-18 | 1.125 | 0.375 | 3.375 | 0.4375 | 1.125 | 1 | 2 |
| CMRL-10-7 | 5/8-18 LH | 1.125 | 0.375 | 3.375 | 0.4375 | 1.125 | 1 | 2 |
| CMR-10-8 | 5/8-18 | 1.125 | 0.375 | 3.375 | 0.5 | 1.3 | 1.125 | 2 |
| CMRL-10-8 | 5/8-18 LH | 1.125 | 0.375 | 3.375 | 0.5 | 1.3 | 1.125 | 2 |
| CMR-12-6 | 3/4-16 | 1.125 | 0.375 | 3.375 | 0.375 | 1.125 | 0.875 | 2 |
| CMRL-12-6 | 3/4-16 LH | 1.125 | 0.375 | 3.375 | 0.375 | 1.125 | 0.875 | 2 |
| CMR-12-8 | 3/4-16 | 1.125 | 0.25 | 3.375 | 0.5 | 1.3 | 1.125 | 2 |
| CMRL-12-8 | 3/4-16 LH | 1.125 | 0.25 | 3.375 | 0.5 | 1.3 | 1.125 | 2 |
| CMR-12-8A | 3/4-16 | 1.125 | 0.375 | 3.375 | 0.5 | 1.3 | 1.125 | 2 |
| CMRL-12-8A | 3/4-16 LH | 1.125 | 0.375 | 3.375 | 0.5 | 1.3 | 1.125 | 2 |
