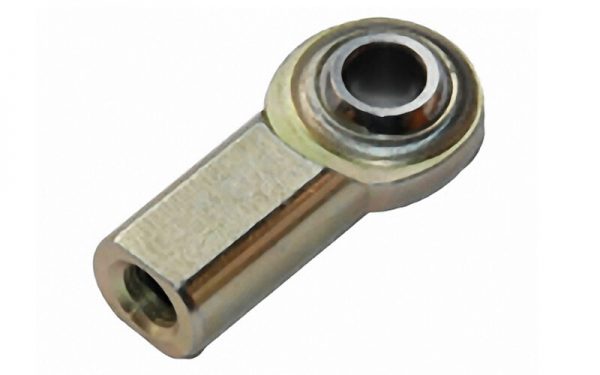

Right & Left Hand Threads
Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please consult us. Grease fittings and stud configurations available.
Ball
• 52100 Bearing Steel
• Heat Treated
• Hard Chrome Plated
• Precision Ground
Body
• Carbon Steel
• Protective Coated for Corrosion Resistance
-In inch dimension series.
-For left-hand thread, please add suffix “L”, e.g. CFL 10.
-Lubricating hole or grease nipple isn’t available for sizes marked “*”.
-When a grease nipple is required for other sizes, please use the sign CF..S.
| Part No | Dimensions mm | Load ratings | Weight | |||||||||
| d | d3 | B | C1 | d2 | h1 | L3 | dK | w | a | kN | kg | |
| 2B | min | ≈ | ||||||||||
| CF3* | 4.826 | 10-32 | 7.92 | 5.94 | 15.88 | 26.97 | 12.70 | 11.10 | 7.92 | 10 | 9.247 | 0.018 |
| CF4* | 6.35 | 1/4-28 | 9.53 | 6.35 | 19.05 | 33.32 | 17.45 | 12.80 | 9.53 | 13.5 | 14.269 | 0.023 |
| CF5* | 7.938 | 5/16-24 | 11.10 | 7.92 | 22.23 | 34.93 | 17.45 | 15.88 | 11.10 | 11 | 17.009 | 0.036 |
| CF6 | 9.525 | 3/8-24 | 12.70 | 9.12 | 25.40 | 41.28 | 20.62 | 18.26 | 14.27 | 11 | 22.627 | 0.059 |
| CF7 | 11.113 | 7/16-20 | 14.27 | 10.31 | 28.58 | 46.02 | 23.80 | 20.62 | 15.88 | 10.5 | 28.400 | 0.082 |
| CF8 | 12.7 | 1/2-20 | 15.88 | 11.50 | 33.32 | 53.98 | 26.97 | 23.80 | 19.05 | 10 | 40.459 | 0.132 |
| CF10 | 15.875 | 5/8-18 | 19.05 | 12.29 | 38.10 | 63.50 | 34.93 | 25.58 | 22.23 | 13 | 43.203 | 0.195 |
| CF12 | 19.05 | 3/4-16 | 22.23 | 15.06 | 44.45 | 73.03 | 39.67 | 33.32 | 25.40 | 12 | 63.193 | 0.295 |
