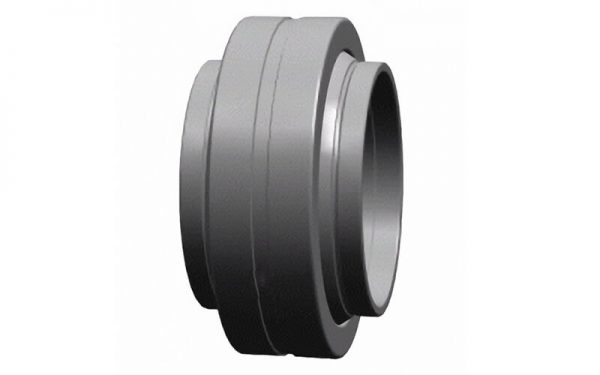

-Outer ring with lubrication groove and holes.
-Inner ring with cylindrical extensions at each side.

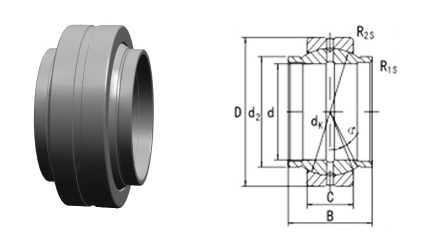

| Bearing No. | Dimensions mm | Load Ratings kN | Weight kg | |||||||||
| d | d2 | D | B | C | dk | R1s | R2s | α | Dyn | Stat | ||
| min | min | ≈ | C | Co | ||||||||
| GEEW12ES | 12 | 15.5 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 4 | 10 | 54 | 0.022 |
| GEEW16ES | 16 | 20 | 28 | 16 | 9 | 23 | 0.3 | 0.3 | 4 | 17.6 | 88 | 0.035 |
| GEEW20ES | 20 | 25 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 4 | 30 | 146 | 0.07 |
| GEEW25ES | 25 | 30.5 | 42 | 25 | 16 | 35.5 | 0.6 | 0.6 | 4 | 48 | 240 | 0.12 |
| GEEW30ES | 30 | 34 | 47 | 30 | 18 | 40.7 | 0.6 | 0.6 | 4 | 62 | 310 | 0.168 |
| GEEW32ES | 32 | 37 | 52 | 32 | 18 | 44 | 0.6 | 1 | 4 | 67 | 335 | 0.2 |
| GEEW35ES | 35 | 40 | 55 | 35 | 20 | 47 | 0.6 | 1 | 4 | 79 | 399 | 0.253 |
| GEEW40ES | 40 | 46 | 62 | 40 | 22 | 53 | 0.6 | 1 | 4 | 100 | 500 | 0.34 |
| GEEW45ES | 45 | 52 | 68 | 45 | 25 | 60 | 0.6 | 1 | 4 | 127 | 637 | 0.481 |
| GEEW50ES | 50 | 57 | 75 | 50 | 28 | 66 | 0.6 | 1 | 4 | 156 | 780 | 0.56 |
| GEEW60ES | 60 | 68 | 90 | 60 | 36 | 80 | 1 | 1 | 4 | 245 | 1220 | 1.15 |
| GEEW63ES | 63 | 71.5 | 95 | 63 | 36 | 83 | 1 | 1 | 4 | 255 | 1270 | 1.2 |
| GEEW70ES | 70 | 78 | 105 | 70 | 40 | 92 | 1 | 1 | 4 | 315 | 1560 | 1.7 |
| GEEW80ES | 80 | 91 | 120 | 80 | 45 | 105 | 1 | 1 | 4 | 400 | 2000 | 2.4 |
| GEEW90ES | 90 | 99 | 130 | 90 | 50 | 115 | 1 | 1 | 4 | 488 | 2440 | 3.2 |
| GEEW100ES | 100 | 113 | 150 | 100 | 55 | 130 | 1 | 1 | 4 | 607 | 3030 | 4.8 |
| GEEW110ES | 110 | 124 | 160 | 110 | 55 | 140 | 1 | 1 | 4 | 654 | 3270 | 5.78 |
| GEEW125ES | 125 | 138 | 180 | 125 | 70 | 160 | 1 | 1 | 4 | 950 | 4750 | 8.49 |
| GEEW160ES | 160 | 177 | 230 | 160 | 80 | 200 | 1 | 1 | 4 | 1360 | 6800 | 16.5 |
| GEEW200ES | 200 | 221 | 290 | 200 | 100 | 250 | 1.1 | 1.1 | 4 | 2120 | 10600 | 32.1 |
| GEEW250ES | 250 | 317 | 400 | 250 | 120 | 350 | 1.1 | 1.1 | 4 | 3750 | 17800 | 99.1 |
| GEEW320ES | 320 | 405 | 520 | 320 | 160 | 450 | 1.1 | 1.1 | 4 | 6200 | 30500 | 225 |
