-Outer ring with single split in axial direction.
-Lubricating grooves and holes in the outer and inner rings of type ES.
-Outer ring of type-2RS with lip seals in both sides.
-Both outer and inner rings are properly phosphate treated.

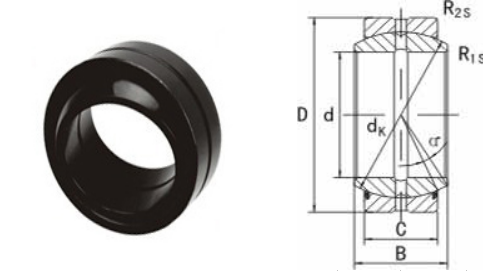

| Bearing No. | Dimensions mm | Load ratings kN | Weight | |||||||
| d | D | B | dk | R1s | R2s | a | dyn | stat | kg | |
| min | min | ≈ | C | C0 | ||||||
| GEG6E | 6 | 16 | 9 | 13 | 0.3 | 0.3 | 21 | 5.5 | 27.5 | 0.008 |
| GEG8E | 8 | 19 | 11 | 16 | 0.3 | 0.3 | 21 | 8.15 | 40.5 | 0.014 |
| GEG10E | 10 | 22 | 12 | 18 | 0.3 | 0.3 | 18 | 10.8 | 54 | 0.02 |
| GEG12E | 12 | 26 | 15 | 22 | 0.3 | 0.3 | 18 | 17 | 85 | 0.034 |
| GEG15ES GEG15ES2RS | 15 | 30 | 16 | 25 | 0.3 | 0.3 | 16 | 21.2 | 106 | 0.046 |
| GEG17ES GEG17ES2RS | 17 | 35 | 20 | 29 | 0.3 | 0.3 | 19 | 30 | 146 | 0.078 |
| GEG20ES GEG20ES2RS | 20 | 42 | 25 | 35.5 | 0.6 | 0.6 | 17 | 48 | 240 | 0.15 |
| GEG25ES GEG20ES2RS | 25 | 47 | 28 | 40.7 | 0.6 | 1 | 17 | 62 | 310 | 0.19 |
| GEG30ES GEG30ES2RS | 30 | 55 | 32 | 47 | 0.6 | 1 | 17 | 80 | 400 | 0.29 |
| GEG35ES GEG35ES2RS | 35 | 62 | 35 | 53 | 0.6 | 1 | 16 | 100 | 500 | 0.39 |
| GEG40ES GEG40ES2RS | 40 | 68 | 40 | 60 | 0.6 | 1 | 17 | 127 | 640 | 0.52 |
| GEG45ES GEG45ES2RS | 45 | 75 | 43 | 66 | 0.6 | 1 | 15 | 156 | 780 | 0.68 |
| GEG50ES GEG50ES2RS | 50 | 90 | 56 | 80 | 0.6 | 1 | 17 | 245 | 1220 | 1.4 |
| GEG60ES GEG60ES2RS | 60 | 105 | 63 | 92 | 1 | 1 | 17 | 315 | 1560 | 2 |
| GEG70ES GEG70ES2RS | 70 | 120 | 70 | 105 | 1 | 1 | 16 | 400 | 2000 | 2.9 |
| GEG80ES GEG80ES2RS | 80 | 130 | 75 | 115 | 1 | 1 | 14 | 490 | 2450 | 3.5 |
| GEG90ES GEG90ES2RS | 90 | 150 | 85 | 130 | 1 | 1 | 15 | 610 | 3050 | 5.4 |
| GEG100ES GEG100ES2RS | 100 | 160 | 85 | 40 | 1 | 1 | 14 | 655 | 3250 | 5.9 |
| GEG110ES GEG110ES2RS | 110 | 180 | 100 | 160 | 1 | 1 | 11 | 950 | 4750 | 11 |
| GEG120ES GEG120ES2RS | 120 | 210 | 115 | 180 | 1 | 1 | 16 | 1080 | 5400 | 15 |
