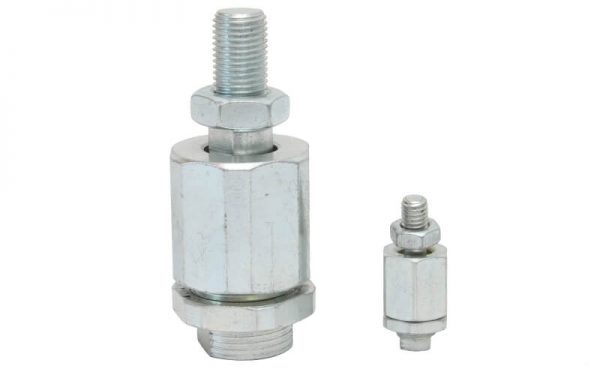

Self-aligning Joints series GB,

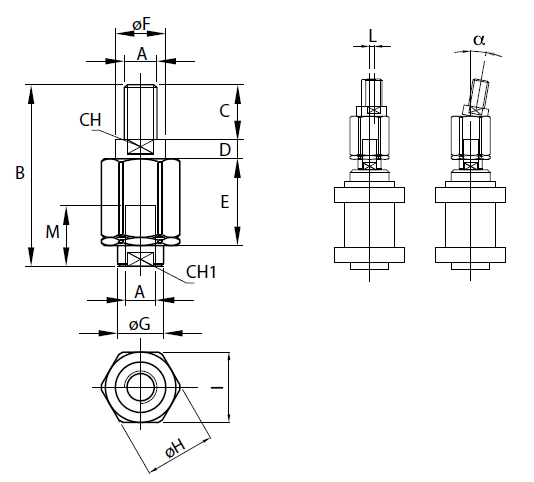

| Ref.No. | Cylinder | A | B | C | D | E | F | G | H | I | L | M | CH | α | CH1 | Weight (kg) |
| SAB 6 | 12/16 | M6x1,00 | 35 | 10 | 3,5 | 17,5 | 6,0 | 8,5 | 15 | 13 | 1 | 13 | 5 | 10 | 7 | 0,025 |
| SAB 8 | 25/30 | M8x1,25 | 57 | 20 | 4,0 | 26 | 8,0 | 12,5 | 19 | 17 | 2 | 18 | 7 | 10 | 11 | 0,06 |
| SAB10x1,25 | 32 | M10x1,25 | 71 | 20 | 5,0 | 35,0 | 14,0 | 22,0 | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,22 |
| SAB10 | 32 | M10x1,50 | 71 | 20 | 5,0 | 35,0 | 14,0 | 22,0 | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,22 |
| SAB12x1,25 | 40 | M12x1,25 | 75 | 24 | 5,0 | 35,0 | 14,0 | 22,0 | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,23 |
| SAB12 | 40 | M12x1,75 | 75 | 24 | 5,0 | 35,0 | 14,0 | 22,0 | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,23 |
| SAB16x1,5 | 50/63 | M16x1,50 | 103 | 32 | 8,0 | 54,0 | 22,0 | 32,0 | 45 | 41 | 2 | 32 | 20 | 10 | 27 | 0,66 |
| SAB20x1,5 | 80/100 | M20x1,50 | 119 | 40 | 8,0 | 54,0 | 22,0 | 32,0 | 45 | 41 | 2 | 39 | 20 | 10 | 27 | 0,7 |
| SAB27x2 | 125 | M27x2,00 | 147 | 54 | 10,0 | 60,0 | 32,0 | 57,0 | 70 | 65 | 2 | 46 | 24 | 8 | 54 | 1,00 |
| SAB36x2 | 160/200 | M36x2,00 | 190 | 72 | 15,0 | 77,0 | 39,0 | 57,0 | 75 | 70 | 2 | 68 | 32 | 8 | 54 | 3,12 |
