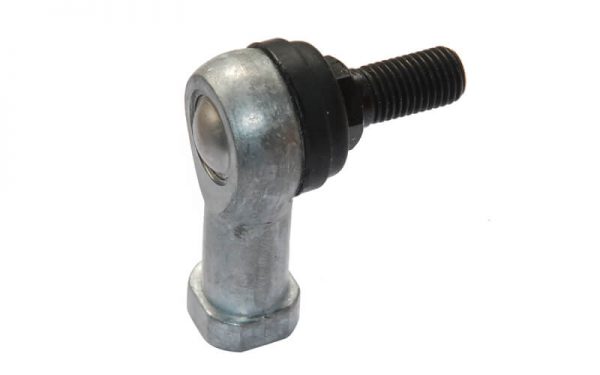

Material:
Housing,high strength zinc alloy;
Ball,bearing steel GCr15,equivalent to steel 52100;
Shank, low carbon steel 40Cr;
Dust Cover,NBR rubber
Left hand thread,please add suffix’L’,e.g.BLM10X1.5L
Grease is seales in the boot,high wear resistance
Work Temperature,-40°C-120°C

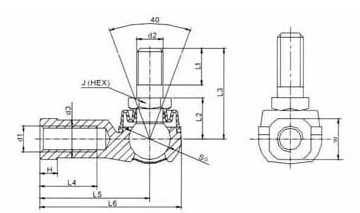

| Part No. | Dimensions mm | Static load Capability (kN) | Yield strength （kN) | Weight (g) | ||||||||||||
| D1 | D2 | D3 | L1 | L2 | L3 | L4 | L5 | L6 | H | W | J | SΦ | ||||
| BL M6×1 | M6×1 | M6×1 | 10 | 11 | 11 | 26 | 16 | 30 | 38 | 5 | 11 | 10 | 11.11 | 9.9 | 3.92 | 26 |
| BLM8×1.25 | M8×1.25 | M8×1.25 | 13 | 12 | 14 | 31 | 19 | 36 | 45.5 | 6 | 14 | 12 | 12.7 | 12.5 | 6.57 | 49 |
| BL M10×1.25 | M10×1.25 | M10×1.25 | 14.5 | 15 | 17 | 37 | 23 | 43 | 55.5 | 7 | 17 | 14 | 15.87 | 18.3 | 11.3 | 87 |
| BLM10×1.5 | M10×1.5 | M10×1.5 | 14.5 | 21 | 17 | 43 | 23 | 43 | 55.5 | 7 | 17 | 14 | 15.87 | 18.3 | 11.3 | 90 |
| BLM12×1.25 | M12×1.25 | M12×1.25 | 17.5 | 17 | 19 | 42 | 26 | 50 | 64.5 | 8 | 19 | 17 | 19.05 | 26.7 | 16.4 | 143 |
| BLM12×1.75 | M12×1.75 | M12×1.75 | 17.5 | 24 | 19 | 49 | 26 | 50 | 64.5 | 8 | 19 | 17 | 19.05 | 26.7 | 16.4 | 148 |
| BLM16×1.5 | M16×1.5 | M16×1.5 | 22 | 23 | 23.5 | 60 | 34 | 64 | 83 | 11 | 24 | 22 | 22.22 | 36.4 | 26.9 | 315 |
| BLM16×2 | M16×2 | M16×2 | 22 | 29 | 23.5 | 66 | 34 | 64 | 83 | 11 | 24 | 22 | 22.22 | 36.4 | 26.9 | 325 |
